Two- versus one-bag fluid delivery in pediatric and adolescent diabetic ketoacidosis: a systematic review and meta-analysis

Article information

Clin Exp Pediatr. 2024;67(10):486-497

Publication date (electronic) : 2024 June 27

doi : https://doi.org/10.3345/cep.2023.01536

Maya L. Nasser, BSc^,1,2, Joseph Nasr, BSc², Reem B. Zalloum, BSc³, Nathanael Q.E. Yap, BHMSc^1,2, Natalie E. Bourdakos, BSc^1,2, Shahid Miangul, BSc^1,2, Tara A. Betts, MBBS⁴, Hayato Nakanishi, MS^1,2, Christian A. Than, PhD^1,2,5, Serge Jabbour, MD⁶

¹St George’s University of London, London, UK

²University of Nicosia Medical School, University of Nicosia, Nicosia, Cyprus

³College of Liberal Arts and Sciences, University of Illinois at Chicago, Chicago, IL, USA

⁴Cardiff and Vale University Health Board, Heath Park, Cardiff, UK

⁵School of Biomedical Sciences, The University of Queensland, St Lucia, Brisbane, Australia

⁶Thomas Jefferson University Hospital, Philadelphia, PA, USA

Corresponding author: Maya L. Nasser, Bsc. University of Nicosia Medical School, 93 Agiou Nikolaou, 2408 Engomi, Nicosia, Cyprus Email: nasser.m@live.sgul.ac.cy

Received 2023 November 14; Revised 2024 March 8; Accepted 2024 April 13.

Abstract

Introduction

Diabetic ketoacidosis (DKA), often the initial manifestation of type 1 diabetes mellitus (T1DM), comprises 15%–70% of annual admissions to pediatric intensive care units (PICU) [1]. Furthermore, it remains prevalent among children with established T1DM, with an admission rate of 6%–8% per year [2]. It is important to note that DKA can also occur in patients with type 2 diabetes as well, although more commonly in adults than in children [3], and is being increasingly studied over time. Guidelines for DKA treatment do not discriminate between diabetes types. However, studies have suggested different treatment outcomes for DKA in type 2 versus type 1 diabetes in adults and children, such as longer time to hyperglycemia and acidosis resolution and insulin independence after DKA resolution [3,4].

The mainstay of DKA management is intravenous (IV) fluid resuscitation and insulin infusion aimed at restoring blood volume as well as glucose, electrolyte, and pH levels. However, fluid therapy may be associated with certain complications, most commonly cerebral edema.Its etiology remains unclear, but current theories postulate that it is correlated with rapid rehydration and subsequent decreases in osmolality along with other significant vasogenic factors [5,6]. Therefore, delicate interplay occurs between controlling the IV fluid administration rate to correct metabolic abnormalities and rapid rehydration, which may result in cerebral edema and hypoglycemia before acidosis resolution is achieved [7].

The traditional one-bag system used to treat DKA consists of one bag containing electrolytes administered alongside an IV insulin infusion with the aim of correcting the hypovolemia and hyperosmolality and resolving the acidosis. To prevent hypoglycemia, the bag was replaced with a new bag containing increasing concentrations of dextrose as the blood glucose levels declined. This system requires multiple fluid bag changes before their depletion. Consequently, this approach leads to a delayed response time for IV fluid changes, restricted variations of dextrose concentrations, and increased hospital costs [8,9].

In an attempt to overcome these limitations, the two-bag system was created at the Children’s Hospital of Philadelphia in 1999 [1,8]. This system consists of 2 bags of fluid administered simultaneously through a single IV line along with an IV insulin infusion. Bag 1 contains electrolytes, while bag 2 incorporates the same electrolyte composition plus dextrose. Independently controlling the infusion rates of each bag ensures a constant fluid infusion rate while tailoring the dextrose concentration to meet patient requirements.

Conflicting results were obtained by comparisons of the one- and two-bag protocols. Notably, some studies failed to identify any differences in the occurrence of hypoglycemic events [10], whereas others reported higher [11] or lower [12,13] frequencies of such events in the two-versus one-bag system. Some studies found no difference in the mean time to acidosis resolution [10], whereas others found that the two-bag system provided faster acidosis resolution [14,15]. These discrepancies also apply to other values such as the glucose reduction rate and average number of utilized fluid bags. Inevitably, a clear gap in the literature impedes the formulation of definitive guidelines for the optimal treatment regimens for pediatric DKA. In aspiring to address this, here we present the first systematic review and meta-analysis to evaluate the current literature on the safety and efficacy of the two- versus one-bag system in patients <21 years of age.

Methods

Results

3. Baseline and clinical characteristics

The baseline and clinical characteristics of the included studies are summarized in Table 1.Within the scope of the 8 studies, 583patients (52.1% female) with a mean age ranging from 6.67 to 15.6 years old collectively contributed to at least 852 DKA episodes. However, the exact total number of DKA episodes remains unclear because Grimberg et al. [8] referred to repeated episodes without specifying the overall count, which led to ambiguity in the cumulative total. Wolfgram et al. [13] presented their results in the context of DKA. The remaining studies reported outcomes based on the number of patients, which was equivalent to the number of episodes.

Table 1.

Baseline and clinical characteristics

Of the 295 patients for whom classification in each group was specified, 145 (49.2%) received one-bag treatment and 150 (50.8%) received two-bag treatment. An analysis of the sex distribution revealed that the one-bag group was 59.7% female (83 of 139), while the two-bag group was 57.5% female (83 of 144) [8,10-12,15,19]. At least 237 DKA episodes (27 %) were managed using the one-bag system, while at least 615 episodes (72.2%) were managed using the two-bag system [10-15,19].

Furthermore,the mean weights were similar between the one- and two-bag groups (48.67±16.14 kg and 48.62±16.45 kg, respectively) [8,11,15,19]. The majority of patients had an established diagnosis of diabetes mellitus: 66.2% (96 of 145) in the one-bag group versus 64.7% (97 of 150)in the two-bag group [8,10-12,15].

4. Bag system protocols

Across all studies, the IV fluid in the one-bag group consisted of sodium chloride (NaCl) at various concentrations, most commonly 0.9% NaCl [8,11,15] and 0.45% NaCl [10,12,15,19], alongside lactated Ringer solution [15], potassium derived from potassium chloride (KCl) [8,11,12,14,15], potassium phosphate (KPO4) [8,11,12,15,19], and/or potassium acetate (Kacetate) [15,19]. Glucose (5% or 10% dextrose) was added when the blood glucose fell below a certain level. In the two-bag group, the composition of the first bag mirrored that of the one-bag group without additional glucose. The second bag had the same composition with added glucose, predominantly 10% dextrose [8,11-15,19], except in the study of Dhochak et al. [10], which used 12% dextrose.

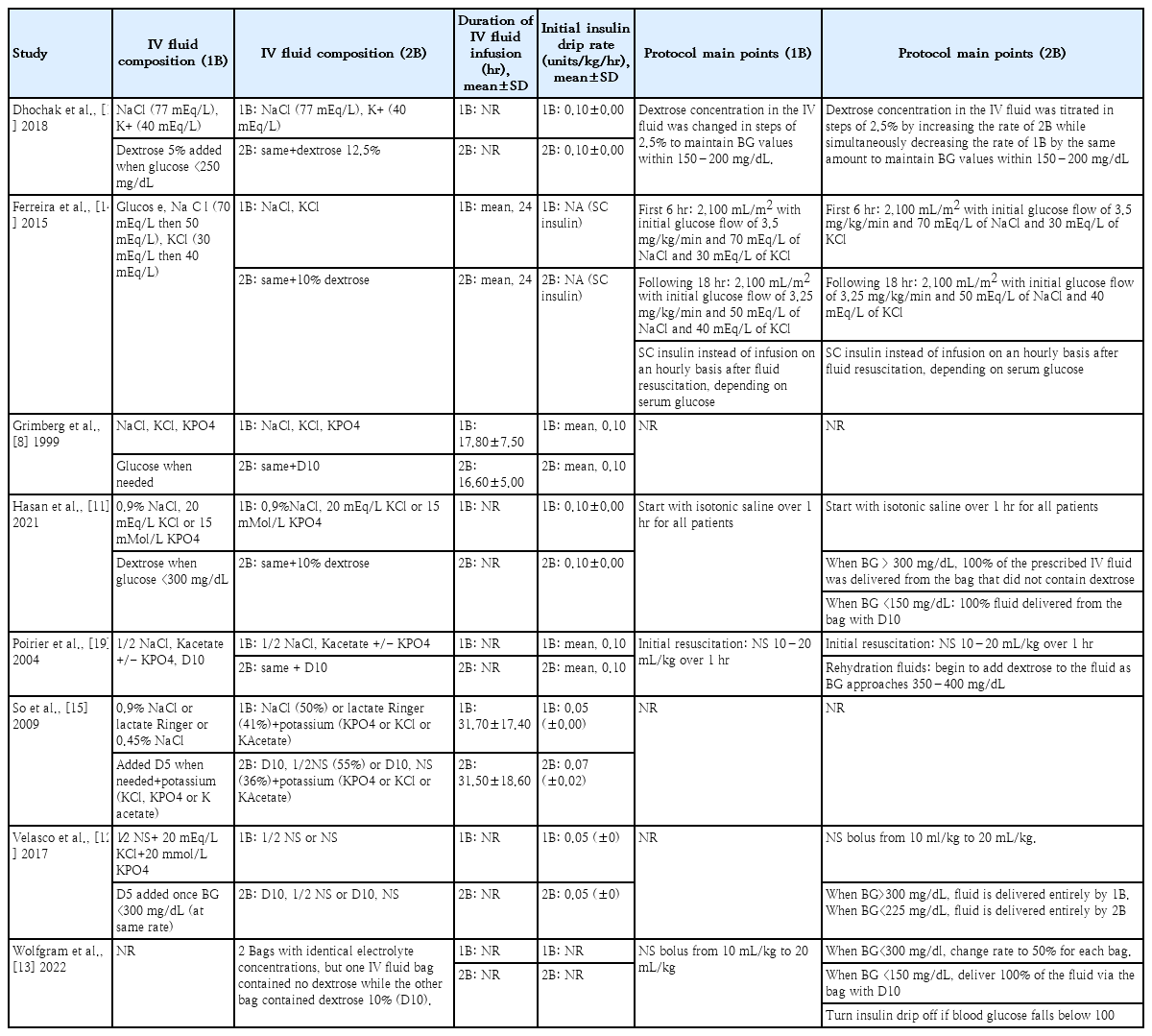

The mean duration of IV fluid infusion ranged from 16.6 to 31.5 hours in the two-bag group and from 17.8 to 31.7 hours in the one-bag group (Table 2). A comprehensive analysis of the forest plot showed no intergroup difference (Supplementary Fig. 2). The mean initial insulin drip rate was set between 0.05 and 0.10 units/kg/hr in both groups in most studies. However, each study used a different protocol, particularly regarding the blood glucose modification thresholds of the 2 bags. The initiation threshold for the bag containing glucose ranged from 300 to 400 mg/dL, whereas the threshold at which this glucose-containing bag constituted 100% of the total fluid delivery ranged from 150 to 225 mg/dL. One study used a specific protocol, such as the subcutaneous delivery of insulin after fluid administration instead of a simultaneous infusion [14]. Moreover, some studies did not follow a specific protocol for glucose titration and/or fluid composition [8,15,19], whereas others used well-defined protocols [10-14]. Details of the IV fluid composition and protocol overview for each bag system in each study are described in Table 2.

Table 2.

Treatment details

5. Initial biochemical values and DKA severity

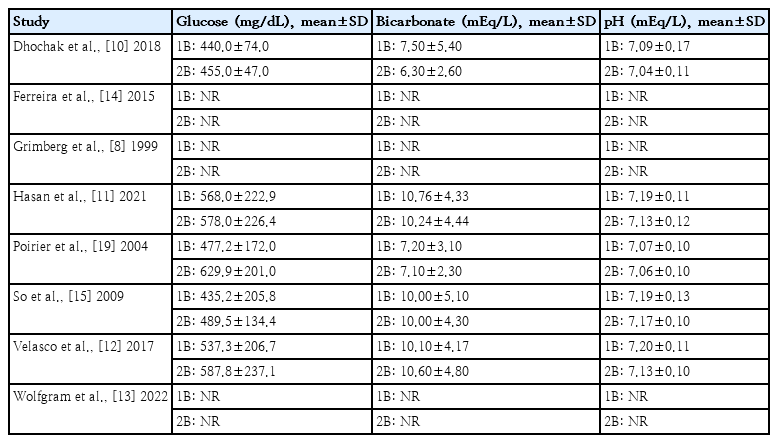

The initial biochemical values of the patients in the included studies are summarized in Table 3. In one of the studies [15], severe DKA was defined as a pH <7.10 mEq/L or bicarbonate <5.00 mEq/L, while moderate DKA was defined as a pH <7.20 mEq/L or bicarbonate <10.00 mEq/L. Overall, the mean pH ranged from 7.07 mEq/L to 7.20 mEq/L in the one-bag groups and from 7.04 mEq/L to 7.17 mEq/L in the two-bag groups. One study excluded patients with severe DKA based on the inclusion criteria [14].

Table 3.

Initial biochemical values

Bicarbonate levels exhibited a mean range of 7.20 mEq/L to 10.76 mEq/L in the one-bag groups and 6.30 mEq/L to 10.60mEq/Linthe two-bag groups.Glucose levels displayed a mean range of 435.20 mg/dL to 568.00 mg/dL in the onebag groups and 455.00 mg/dL to 629.90 mg/dL in the two-bag groups. The mean glucose levels were slightly higher in the two-bag groups. Correspondingly, there appears to be a general trend of bicarbonate and pH values being lower in the two-bag group, but the overall DKA severity seemed similar between groups and across studies [10-12,15,19].

6. Outcomes

The outcomes of the different studies were reported in Table 4.

Table 4.

Outcomes

1) Safety outcomes

It is essential to acknowledge the variability in the definitions of hypoglycemia used in different studies. The distinct blood glucose thresholds for categorizing hypoglycemia across different studies include 50 mg/dL [10], 60 mg/dL [11], and 70 mg/dL [12,13], the latter being in accordance with the definition recognized by the Internal Society for Pediatric and Adolescent Diabetes [20].

Four studies [10-13] reported the incidence of hypoglycemia with a total of 560 DKA episodes in the two-bag group versus 196 in the one-bag group.Additionally, 3 studies [11,15,19] reported the mean glucose correction rate, with 96 patients in the two-bag group and 77 patients in the one-bag group. The pooled estimates revealed no significant differences in hypoglycemia incidence (OR, 0.61; 95% CI, 0.20–1.87; I²=73%) or the mean glucose correction rate between the 2 groups (MD, 0.04 mg/dL/hr; 95% CI, -13.10 to 13.17; I²=64%) (Fig. 1). Cerebral edema, with a very low incidence rate of 0.17%, was examined in all 6 studies that reported complications [8,10-12,14,19]. Notably, this occurred in a single patient in the one-bag group [11]. Cerebral edema was defined as a Glasgow Coma Scale score of<14 coupled with computed tomography findings. The patient was treated with hypertonic saline and achieved a complete neurological recovery [11].

Fig. 1.

Forest plots of the comparison of hypoglycemia (A) and mean glucose correction rates (B) between the two- and one-bag groups through a random-effects model. M-H, Mantel-Haenszel; CI, confidence interval; df, degrees of freedom; IV, inverse variance; SD, standard deviation.

2) Efficacy outcomes

Three studies [8,11,19] reported the average number of fluid bags used, with a total of 84 patients in the two-bag group versus 78 in the one-bag group. Additionally, 2 studies [11,12] reported on the PICU LOS with a total of 80 patients in the two-bag group and 90 patients in the one-bag group. No significant intergroup differences were observed in the number of fluid bags used (MD, -0.82 bags; 95% CI, -3.31 to 1.67; I²=98%) or PICU LOS (MD, -0.29 days; 95% CI, -1.20 to 0.61; I²=94%) (Fig. 2A and B). Conversely, 2 studies [8,19] reported the mean response time for IV fluid changes of 27 patients in the two-bag group and 26 patients in the one-bag group. These findings revealed that the mean response time for IV fluid changes was longer in the two-bag than one-bag group (MD, -32.75 minutes; 95% CI, -43.21 to -22.29;I²=59%) (Fig. 2C).

Fig. 2.

Forest plots of the comparison of average number of fluid bags used (A), pediatric intensive care unit length of stay (B), mean response time for intravenous fluid changes (C), mean bicarbonate correction rate (D), mean time to pH resolution (E), and mean time to diabetic ketoacidosis resolution (F) between the two- and one-bag groups through random (A, B, C) and fixed (D, E, F) effects models. CI, confidence interval; df, degrees of freedom; IV, inverse variance; SD, standard deviation.

Efficacy outcomes also include the resolution of biochemical parameters. Two studies [15,19] reported the mean bicarbonate correction rate of 39 patients in the two-bag group and 25 patients in the one-bag group. Furthermore, 2 studies [12,15] reported the mean time to pH resolution, with 45 patients in the two-bag group and 47 patients in the one-bag group. No significant intergroup differences were seen in bicarbonate correction rate (MD, 0.25 mEq/L/hr; 95% CI, -0.02 to 0.51; I²=45%) or mean time to pH resolution (MD, -0.33 hour; 95% CI, -2.72 to 2.06; I²=0%) (Fig. 2D and E).

Two studies [10,14] provided data on the mean±SD time to DKA resolution of 21 patients in the two-bag group and 20 patients in the one-bag group. DKA resolution was defined as bicarbonate level, pH, and/or glycemia correction. Mean time to DKA resolution was faster in the two-bag than one-bag group (MD, -3.24 minutes; 95% CI, -5.57 to -0.91; I²=0%) (Fig. 2F).

Discussion

Controversy persists about whether the one- or two-bag system is the optimal management plan for pediatric DKA. This study, the first meta-analysis to examine the existing literature, aimed to provide preliminary insights that may contribute to the ongoing discourse. Our findings demonstrate that the two-bag system decreases the DKAresolution time and the mean response time to IV fluid changes. The 2 protocols exhibited similar hypoglycemia and mean glucose correction rates and a very low cerebral edema rate, with only one case reported across all included studies. Similarly, the pH and bicarbonate resolution times and rates, as well as the PICU LOS, did not differ significantly between the 2 groups.

Continuing insulin therapy beyond the achievement of normoglycemia, often due to persistent acidosis, may precipitate hypoglycemia. When severe, this complication can result in convulsions, loss of consciousness, and transient neurological deficits, and it constitutes 4%–10% of cases of mortality among patients with T1DM [24]. Consequently, the adequate addition of glucose to IV fluids is a crucial component of DKA management. Across 4 studies, our results showed no difference in hypoglycemia between the 2 bag systems [8,11-13], with 2 studies reporting no incidence of hypoglycemia [8,14]. However, some factors related to patients themselves may play a larger role in the development of hypoglycemia than the management type used. For instance, in 1 study, the incidence of hypoglycemia was the same for different bag systems but higher among malnourished children regardless of treatment group [10]. These insights underline the multifactorial nature of hypoglycemic risk in the management of DKA.

Moreover, the two-bag system allows for faster glucose titration [6,12]; however, if this leads to inadequate blood glucose monitoring [11], the potential benefits of the two-bag system may be compromised. Therefore, to achieve a faster glucose titration and prevent hypoglycemia, the application of standardized DKA guidelines is crucial. Thus, all aspects of treatment, not just the fluid delivery method, may be optimized. This hypothesis was supported by Wolfgram’s quality improvement initiative, which included a total of 557 visits. DKA management was standardized in terms of treatment protocols, inclusion and education of all stakeholders, handoffs between the Emergency Department and inpatient registered nurses, and explicit electronic medical record orders. These quality improvements result in lower hypoglycemia rates among patients treated with the two-bag system [13]. Our meta-analysis revealed no significant intergroup difference in the glucose correction rate. This may partly explain the lack of intergroup disparity in the hypoglycemic rates. The glucose correction rate and hypoglycemia are related; a slower glucose correction rate provides more time to adjust fluid glucose delivery based on blood glucose levels, which would aid in the prevention of hypoglycemia. Conversely, a faster glucose correction rate may be more challenging to control and potentially precipitate hypoglycemia. Therefore, the glucose correction rate is typically limited to <100mg/dL/hr [15,19]. In all 3 studies reporting this parameter [11,15,19], the glucose correction rate was appreciably below the 100 mg/dL/hr threshold in both groups, showing effective control regardless of the bag system used. However, it is worth acknowledging that these 3 studies had small sample sizes, which may have impacted the results.

Children are particularly susceptible to cerebral edema due to ongoing central nervous system maturation [12]. Across all included studies [11,15,19], only one case of cerebral edema was reported in the one-bag group; this incident was effectively treated without long-term sequelae [11]. Although rare, comprising only 1% of pediatric DKA episodes, cerebral edema is associated with significant mortality, accounting for 57%–87% of all DKA-related deaths. Its signs and symptoms include headache, decreased consciousness, bradycardia, hypertension, and increased intracranial pressure [5,6]. As previously mentioned, its precise etiology remains unclear; however, given that osmotic factors may play a role, controlling fluctuations in serum glucose concentrations is of paramount importance. It is important to note that both groups in the 3 included studies maintained adequate control of serum glucose concentrations [11,15,19]. Moreover, elevated blood urea nitrogen levels and marked hypocapnia at presentation are potential risk factors; however, these factors have not been reported in patients who develop cerebral edema [5,6].

In terms of fluid-related variables, no difference in the number of fluid bags used was observed between the two-and one-bag systems. This finding was consistent with studies conducted by Hasan et al. [11] and Poirier et al. [19], who also reported a low average of 3–4 fluid bags. This implies that a highly optimized IV fluid implementation may have a more pronounced effect on the number of bags used than the choice of bag system. The mean response time from the physician’s order to the implementation of IV fluid changes was shorter in the two- versus one-bag system. For adjustments in the two-bag group, this response time was nearly instantaneous in 1 study [19] and up to 7 min in another [8], whereas in the one-bag group, the response time exceeded 30 minutes in both studies [8,19]. This increased efficiency of healthcare staff enables rapid adjustments and reduces large fluctuations in fluid status. However, given the small sample size of the current meta-analysis, it is essential to highlight the need for further research to increase our understanding.

In terms of biochemical parameters, the mean time to DKA resolution, which incorporated bicarbonate, blood glucose, and venous pH,was shorter for the two- versus onebag system. This observation is consistent with the results of the study of Ferreira et al. [14]. However, this finding was inconsistent with the results of Dhochak et al. [10]. Moreover, no intergroup difference was observed in the time to resolution of acidosis or bicarbonate correction rate when assessed separately. This could indicate an overall greater efficacy of the two-bag system. However, the conflicting outcomes mentioned above may be attributed to the fact that patients were not stratified based on DKA severity at presentation. Recent studies indicated that higher glucose and lower pH levels are independent predictors of longer time to resolution [25]. Therefore, it is imperative that DKA severity be considered in future investigations to reduce confounders. Another significant explanation of why DKA resolution was lower in the two-bag group but no differences were found when pH resolution time and bicarbonate correction rate were assessed separately is that the studies that reported on DKA resolution [10,14] differed from those that reported on pH [12,15] and bicarbonate [15,19] resolution. The need for future studies to report similar outcomes, as well as suggestions for important outcomes, are further discussed below.

As with all meta-analyses, this study has limitations that should be acknowledged. Notably, different quantifiers were used to define DKA resolution: One study used all 3 criteria (pH ≥7.3, bicarbonate ≥15 mEq/L, and glycemia ≤250 mg/dL [14]), another study used only pH and bicarbonate [10], and 2 studies relied solely on pH [12,15]. Interestingly, only 1 study measured ketone resolution time [15]. Further studies should ideally report on all 3 parameters to ensure a more precise evaluation of DKA resolution given that the definition of DKA expressed by the International Society for Pediatric and Adolescent Diabetes includes meeting the criteria for all 3 parameters [2]. Furthermore, although the overall DKA severity seemed similar between groups and across studies [10-12,15,19], it would be more beneficial to compare the mean time to DKA resolution between the 2 groups for different severities to minimize potential confounding factors. Furthermore, urine ketones and plasma osmolality, which were reported in only 1 study [10], could be useful for stratifying DKA severity along with pH, bicarbonate, and glucose parameters. To further eliminate confounding factors and improve study quality (Supplementary Table 1), it was essential to delineate the baseline characteristics of the one- versus two-bag groups for each DKA episode. It could also be useful if future studies report body weight in terms of age- and sex-adjusted SD scores of body weight to ensure that body weight is truly similar between groups and does not act as a potential confounding factor.

As illustrated in Table 3, each study employed a different protocol in terms of fluid composition, insulin administration mode and timing, and glucose titration guidelines. Some studies provided detailed titration protocols based on blood glucose concentrations [10-13], whereas others did not [8,15,19]. Future studies comparing the one- and two-bag systems should establish clear protocols to ensure standardized treatment across all patients and eliminate confounders. The significance of standardized management protocols was demonstrated in the study of Wolfgram et al. [13] as well as in the study of Babbitt et al. [1], in which implementing an IV fluid titration algorithm resulted in faster blood glucose resolution and maintenance for patients treated with the two-bag fluid system.

Additionally, the forest plots displayed high heterogeneity (I²>50%) for the 5 outcomes of hypoglycemia, mean glucose correction rate, mean response time for IV fluid bag changes, average number of fluid bags used, and mean PICU LOS, with a heterogeneity of I²>90% for the latter two. This high heterogeneity further supports the idea that confounders such as DKA severity and differences within protocols may have influenced the results.

Other potential confounders include comorbidities such as malnutrition and pre-existing T1DM. Conversely, the heterogeneity rate was 0% for time to DKA resolution and time to pH resolution, which may indicate greater reliability. However, the extent to which conclusions can be drawn from the results remains unclear. For most outcomes, the arguments presented here are preliminary in nature owing to small sample sizes and the limited number of studies reporting each outcome.

This raises an important question: What are the most reliable indicators of safety and efficacy of IV fluids used to treat DKA in pediatric patients? A consensus on preferred outcomes should be reached to encourage future studies to report consistent measures. Moreover, most of the included studies were retrospective with only 2 randomized controlled trials. This introduces the risk of selection bias. Ideally, future meta-analyses should include more randomized controlled trials with similar outcomes and larger sample sizes to provide more accurate evidence.An example of such outcomes could be the levels of β-hydroxybutyrate (BOHB), the primary ketone body in DKA. Interestingly, none of the studies included in this meta-analysis incorporated BOHB concentration into their DKA management protocols. Previous studies demonstrated that regular bedside serum BOHB concentrations is a valuable tool for monitoring treatment response and establishing criteria for assessing DKA resolution. In future studies of DKA resolution, the inclusion of BOHB measurements should be considered because of the benefits they offer for monitoring patients through serial measurements [26]. It is also important for studies to adopt similar definitions for outcomes such as hypoglycemia that align with recent international guidelines such as those provided by the International Society for Pediatric and Adolescent Diabetes [20].

Despite the limitations and preliminary nature of this meta-analysis, its principal objective was to serve as an important first step in elucidating where current evidence stands on the safety and efficacy of the two-bag versus traditional one-bag system in patients <21 years of age with DKA. This study also offers guidance for future research endeavors seeking to optimize DKA management protocols and outcomes.

Conclusions

The preliminary results of the current meta-analysis suggest that the two-bag system could be an alternative to the one-bag system for the initial treatment of DKA in selected patients <21 years of age. This was dictated by our observations, which revealed no discernible differences between systems in hypoglycemia, glucose correction rates, or the occurrence of cerebral edema. The two-bag system showed a faster mean time to DKA resolution and a faster mean response time for IV fluid changes, implying potential advantages in terms of efficacy. In terms of cost-effectiveness, no significant intergroup differences were observed in the average number of fluid bags. However, further studies are required that feature greater patient stratification based on DKA severity, fluid composition, insulin administration timing, and glucose titration protocols. These efforts will further elucidate a more comprehensive understanding of the comparative efficacy of the two- versus one-bag system for DKA treatment.
